DPA 4062 CORE+ Omni Miniature Microphone, Extreme SPL, MicroLock

$825.00

✔️ Experience the same great sensitivity with even more clarity at higher SPL

✔️ Effectively negates microphone distortion across the entire dynamic range

✔️ Achieves an even higher peak SPL taking your sound to the next level

✔️ Not only technically measurable, but also audibly noticeable





SKU: DPA-4062-OP-C-X90 Category: Tags: , , , ,

Introducing CORE+ by DPA

DPA CORE+ is a revolutionary leap ahead in microphone design, blurring the lines between what is and isn’t acoustically possible. This technology neutralises distortion across the entire dynamic range of the microphone making any residual distortion imperceptible to the naked ear and virtually unmeasurable.

Audio will never be the same

Removing these remnants of distortion allows sound engineers to capture a new level of audio clarity easily and efficiently, so they can shape an extraordinary listening experience for the audience.

Features of CORE+:

  • Effectively negates microphone distortion across the entire dynamic range
  • Captures the purest, clearest sound at the source
  • Lets sound engineers focus on shaping an extraordinary experience for the audience
  • Reduces hassle from unpredictable challenges in the live show environment

Distortion free…

Microphones with CORE+ deliver crystal clear, distortion-free sound across the entire dynamic range of the microphone. Anyone seeking the highest possible sound quality will appreciate CORE+.

Whether recording or amplifying content, the sound will remain clear and completely undistorted by the microphone, even when the talent speaks or sings at louder volumes.

…from high to low SPL

Especially at higher sound pressure levels and with multiple microphones on stage, the elimination of distortion will enhance the overall clarity and transparency of the entire sound image.

For miniature microphones in particular, sound professionals in theatres and film industry are the primary beneficiaries.

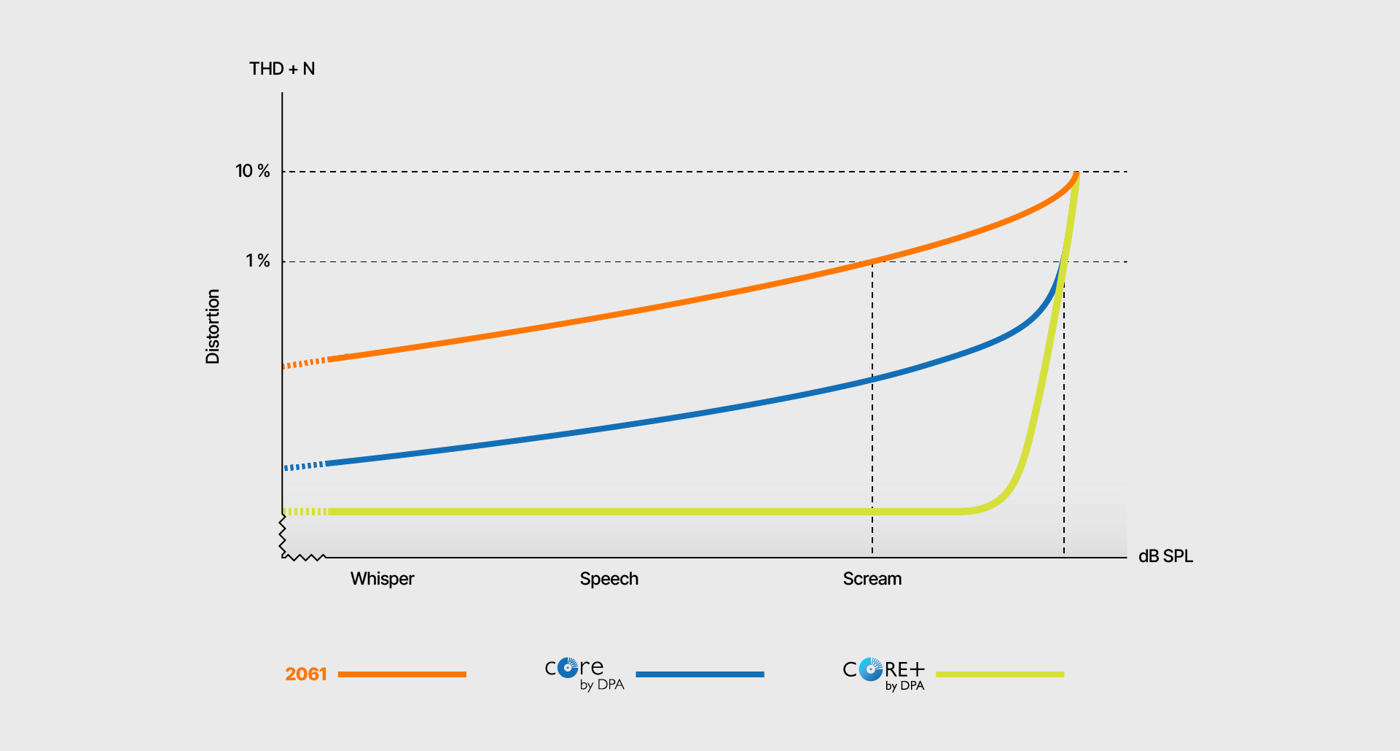

Neutralising distortion

Microphones with CORE+ provide even more clarity across the entire dynamic range, from low to high sound pressure levels.

Select Colour

Beige, Black, Brown, White

Specifications

Directional pattern Omnidirectional
Principle of operation Pressure
Cartridge type Pre-polarized condenser
Frequency response 20 Hz – 20 kHz
Effective frequency range ±2 dB Soft boost grid: 20 Hz – 20 kHz, 3 dB soft boost at 8 – 20 kHz. High boost grid: 20 Hz – 20 kHz, 10 dB boost at 12 kHz
Sensitivity, nominal, ±3 dB at 1 kHz 1 mV/Pa; -60 dB re. 1 V/Pa
Equivalent noise level, A-weighted Typ. 33 dB(A) re. 20 µPa (max. 37 dB(A))
Equivalent noise level, ITU-R BS.468-4 Typ. 45 dB (max. 49 dB)
Distortion, THD < 1%  136 dB SPL RMS, 139 dB SPL peak
Dynamic range  Typ. 106 dB
Max. SPL, THD 10% 154 dB SPL peak
Rated output impedance 30 – 40 Ω
Cable drive capability Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
Power supply (for full performance) For wireless systems Min. 5 V – max. 10 V through DPA adapter
With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
Current consumption Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
Connector MicroLock, MicroDot, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack
Weight 7.5 g (0.26 oz) incl. Cable and MicroLock connector
Microphone diameter 5.4 mm (0.21 in)
Microphone Length 12.7 mm (0.5 in)
Cable length 1.8 m (5.9 ft)
Polarity Positively increasing sound pressure produces positive going voltage on MicroLock pin
Temperature range -40°C to 45°C (-40°F to 113°F)
Relative humidity (RH) Up to 90%
